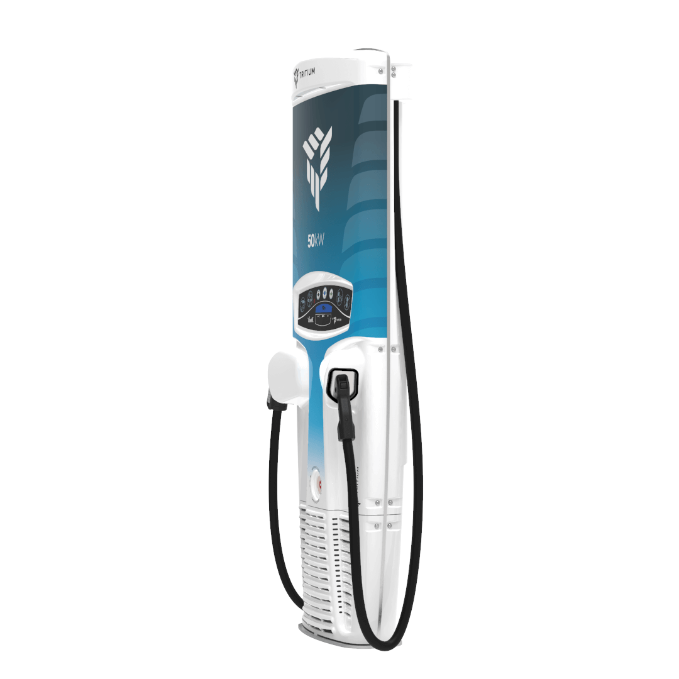

50kW Tritium DC fast charger
Tritium’s RT50 is a compact, reliable, and robust DC fast charger capable of charging all EVs on the market. This all-in-one unit is small enough to suit your site’s configuration and maximize your parking space without need for expensive site modifications. Lightweight but strong, easy to install, cost-effective, and backed by our 24/7 customer care, the RT50 is a smart DC fast charging option.
Industry
The world’s smallest footprint DC charger
- The world’s smallest footprint DC charger for flexible site location options
- Easy and quick to install for faster return on investment
- Supports a wide range of grid voltages
- Designed to thrive in any environmental condition or temperature range
- Access to real-time data
- Custom branding
SPECIFICATIONS CONNECTORS CHAdeMO and CCS (Type 1 or 2)
POWER Up to 50kW SUPPLY INPUT 380 - 480 V AC 3ø
SUPPLY FREQUENCY 50-60Hz
IP RATING IP65 EFFICIENCY >94%
POWER FACTOR 0.99
MAXIMUM OPERATING ALTITUDE 2000m (6560')
OPERATING TEMPERATURE -35oC to 50oC (-31oF to 122oF)
STORAGE TEMPERATURE -55oC to 80oC (-67oF to 176oF)
NETWORK CONNECTION 3G/4G and Gigabit Ethernet
RFID MIFARE ISO/IEC14443A/B, ISO/IEC15693, ISO/IEC18000-3, FeliCa, NFC, EMV 2.0
CREDIT CARD READER Optional
COMMUNICATION PROTOCL OCPP 1.6J
WEIGHT 167kg (369 lb)
ELECTRICAL PROTECTION Short circuit; Over voltage
DIMENSIONS 2000 (6'7") (H) x 750 (2'6") (W) x 330 (1'1") (D) mm
FREIGHT 24 units per 20’ container
CERTIFICATION CE, UL, CHAdeMO, RCM, FCC
